spray hood fittings - Side- and Tubemounting

Tubebase for tubes with 22-25mm outside-Ø and drop nose pin, 90°

Art.-No.	description	fork width mm	Ø Pin mm

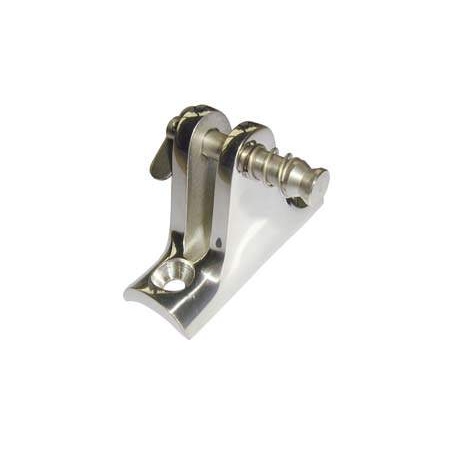

EK86200 Rohrbeschlag, konkav A4 für Rohr 22-25mm, Klappnasenb. 6mm Price (EUR): € 16,70 per pc. on stock		7 mm	6 mm
EK95290 Rohrbeschlag, konkav A4 für Rohr 22-25mm, Klappnasenbolzen 6mm Price (EUR): € 9,40 per pc. on stock		7,5 mm	6 mm
EK86220P Ersatz-Klappnasenbolzen mit Feder A4 6mm für EK86220 Price (EUR): € 6,20 per pc. on stock	replacement pin for EK86200		6 mm

Tube base with removable fork

Art.-No.	description	fork width mm	Ø Pin mm

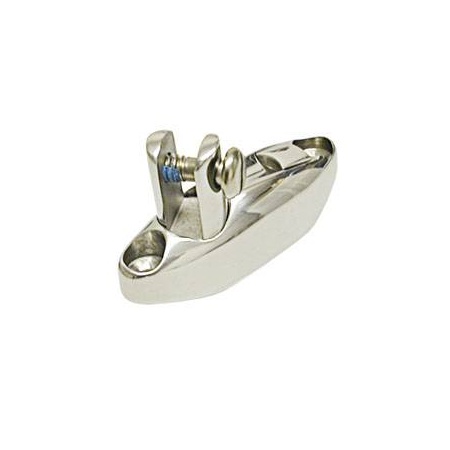

EQ86609 Rohrbeschlag, abnehmbar A4 für Rohr, Schraube 6mm zöllig Price (EUR): € 53,50 per pc. on stock			6 mm

Side mount base for key hole endplugs

Art.-No.	description		Ø Pin mm

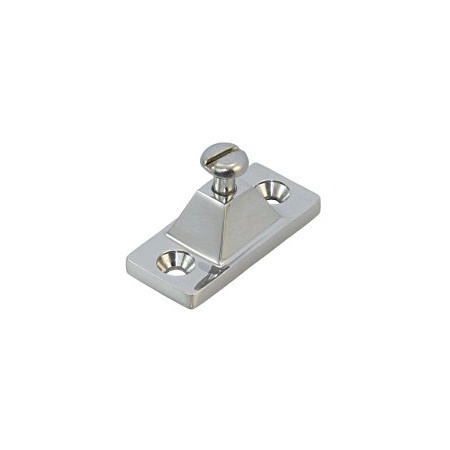

EK11 Verdeck-Seitenbefestigung A4 50x22mm, Schraube 6mm zöllig Price (EUR): € 8,80 per pc. on stock			5,5 mm
EK95011 Verdeck-Seitenbefestigung A4 50x22mm, Schraube M6 Price (EUR): € 6,50 per pc. on stock			6 mm

HD625

HD625C

suitable for key hole endplugs

Art.-No.	description		Ø Pin mm

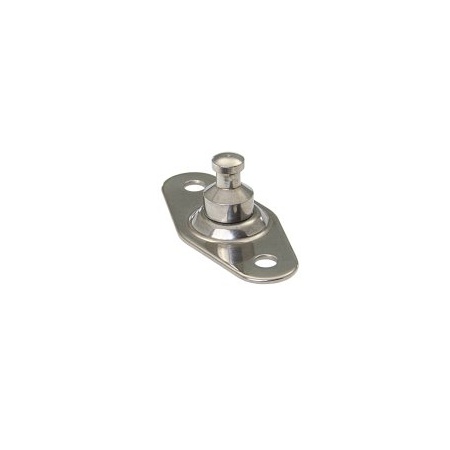

HD625 price on application	flat mounting base

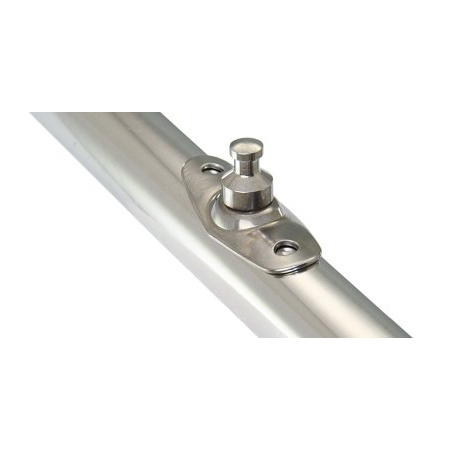

HD625C price on application	concave mounting base
