spray hood fittings - Joint Fittings

thumb

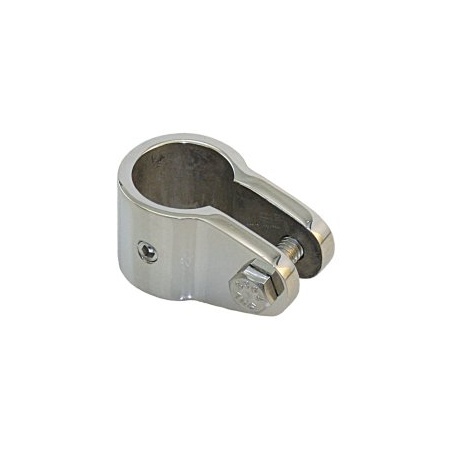

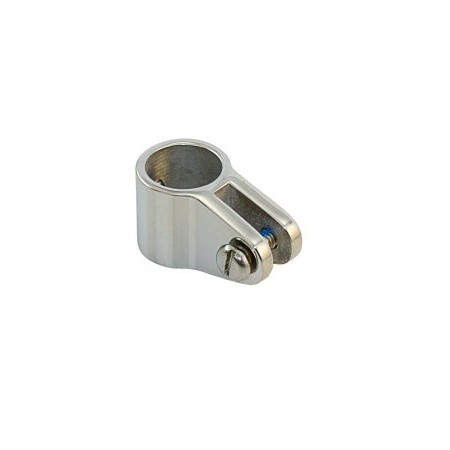

Joint fitting equipped with one set screw for fastening
Art.-No.Tube Øa
mm		fork width
mm		Ø Pin
mm
20 mm7 mm6 mm
20 mm7,5 mm6 mm
22 mm7 mm6 mm
22 mm7,5 mm6 mm
25 mm7 mm6 mm
25 mm7,5 mm6 mm
30 mm9 mm7 mm
30 mm7,5 mm8 mm
thumb
Art.-No.Tube Øa
mm		fork width
mm		Ø Pin
mm
22 mm8 mm5 mm

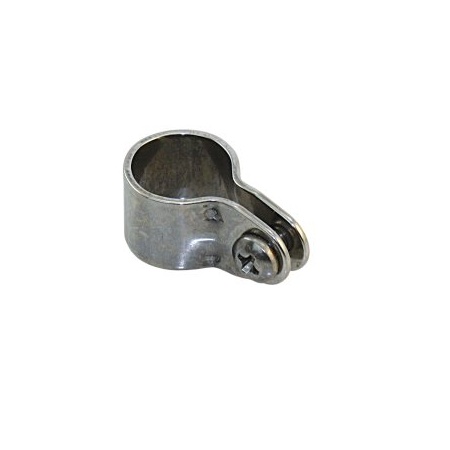

thumb
Art.-No.Tube Øa
mm		pin Ø
mm
18 mm5 mm
19 mm8 mm
20 mm8 mm
22 mm8 mm
25 mm8 mm
thumb

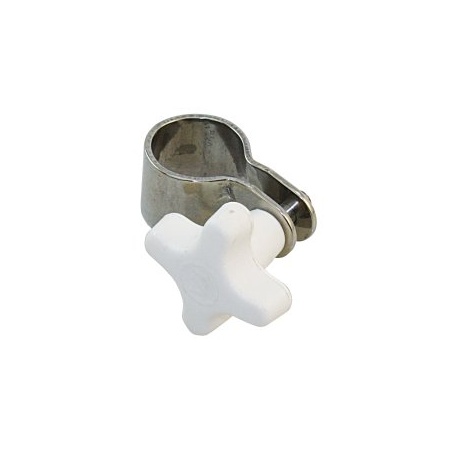

with hand knob
Art.-No.Tube Øa
mm		pin Ø
mm
18 mm11 mm
20 mm8 mm
22 mm6 mm
25 mm11 mm
thumb

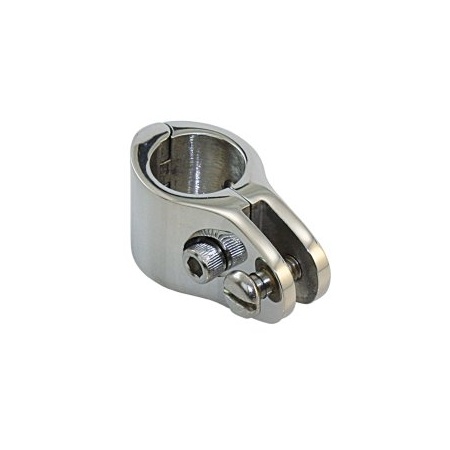

Unfolding joint fittings
Art.-No.Tube Øa
mm		fork width
mm		Ø Pin
mm
22 mm7 mm6 mm
25 mm7 mm6 mm
inside-hexagon 1/8" required for mounting
thumb

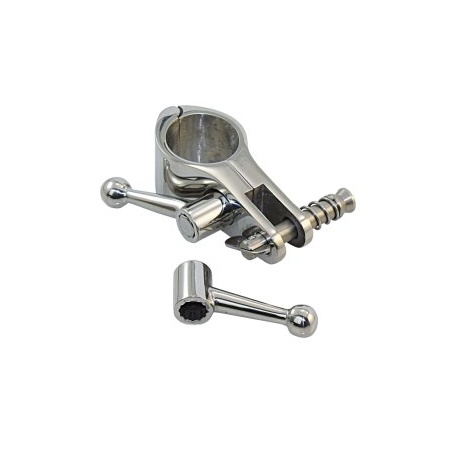

Unfolding joint fitting with quick locking and drop nose pin.
Art.-No.
joint fitting		Art.-No.
spare handle		Tube Øa
mm		fork width
mm		Ø Pin
mm
22 mm6 mm6 mm
25 mm6 mm6 mm
30 mm8 mm6 mm
thumb

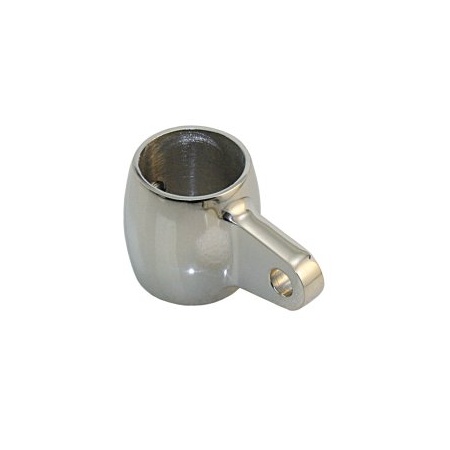

Joint fitting with eye
Art.-No.Tube Øa
mm		width Eye
mm		eye-Ø
mm
22 mm7 mm6 mm
25 mm7 mm6 mm
spare screws and tools
Art.-No.descriptionpackage
set screw in stainless steel (1/8")VP à 10 Stück
inside-hexagon for EK87104 (1/8")VP à 10 Stück

Short URL: http://lindemann.kg/s/16/225

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
