spray hood fittings - Endcaps

thumb

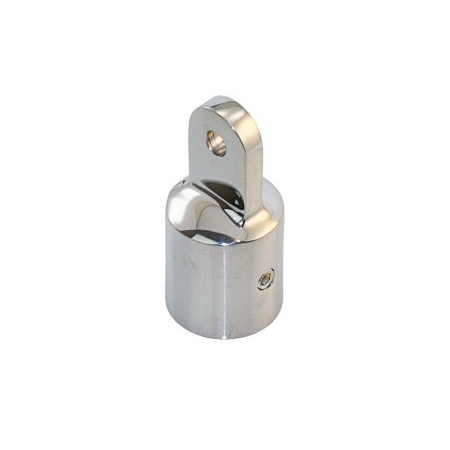

End cap with eye equipped with one set screw for fastening
Art.-No.Tube Øa
mm		width Eye
mm		eye-Ø
mm
20 mm7 mm7 mm
20 mm7 mm6,6 mm
22 mm7 mm6,4 mm
22 mm7 mm6,6 mm
25 mm7 mm6,4 mm
25 mm7 mm6,6 mm
30 mm9 mm8 mm
30 mm7 mm8,6 mm
thumb

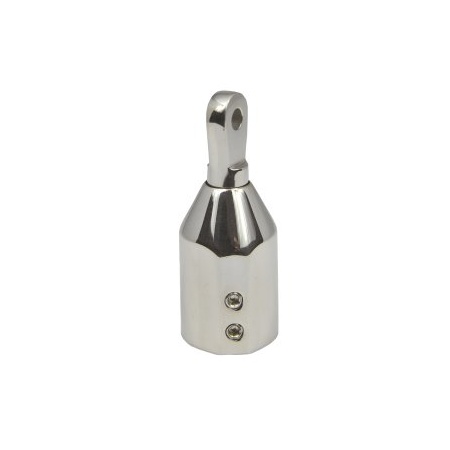

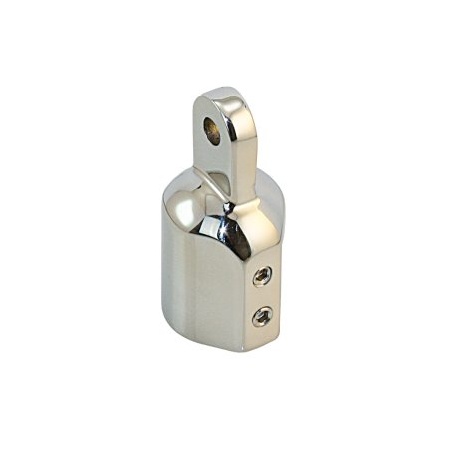

End cap with eye equipped with two set screws for fastening
Art.-No.Tube Øa
mm		width Eye
mm		eye-Ø
mm
22 mm7 mm6,4 mm
25 mm7 mm6,4 mm
30 mm7 mm8,6 mm
thumb

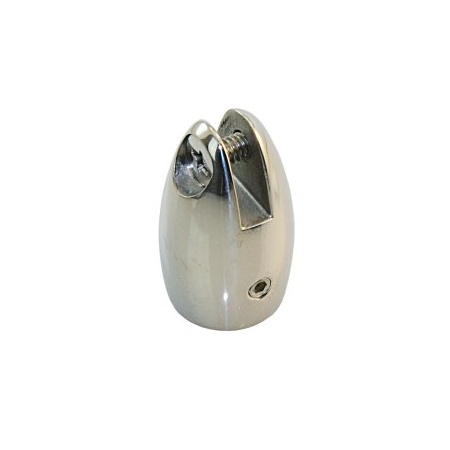

End cap with fork
Art.-No.Tube Øa
mm		fork width
mm		Ø Pin
mm
22 mm7 mm6 mm
25 mm7 mm6 mm
thumb

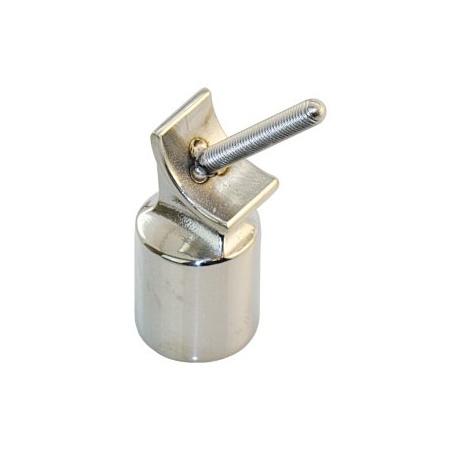

End cap for handrails
Art.-No.
premium quality		Tube Øa
mm
22 mm
thumb
Adjustable Endcap complete in stainless steel. Length eye fitting 68 mm
Art.-No.Tube Øa
mm		width Eye
mm		eye-Ø
mm
22 mm7 mm6,6 mm
25 mm7 mm6,6 mm
thumb

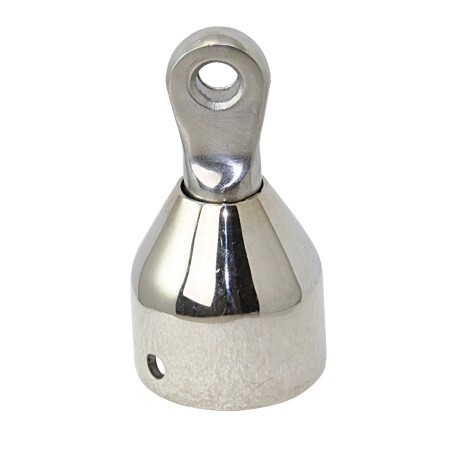

Adjustable end cap with eye fitting
Art.-No.Tube Øa
mm		width Eye
mm		eye-Ø
mm
22 mm6,6 mm6 mm
25 mm6,6 mm6 mm
33 mm replace Eye insert
43 mm replace Eye insert
thumb

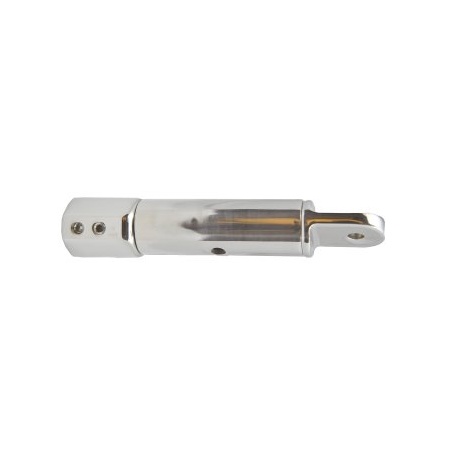

Adjustable Endcaps complete in stainless steel with adjustment sleeve. Length eye fitting 68 mm
Art.-No.Tube Øa
mm		width Eye
mm		eye-Ø
mm
22 mm7 mm6,6 mm
25 mm7 mm6,6 mm
