batten fittings - RUTGERSON - Batten Fitting System 1500

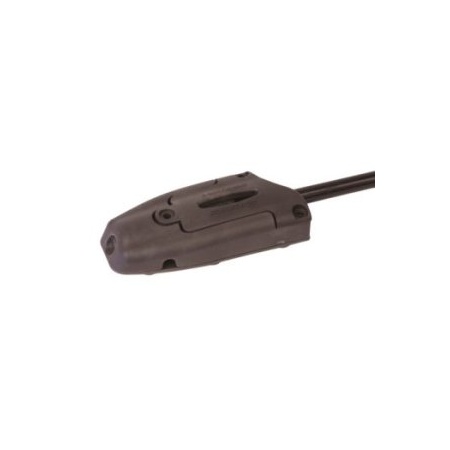

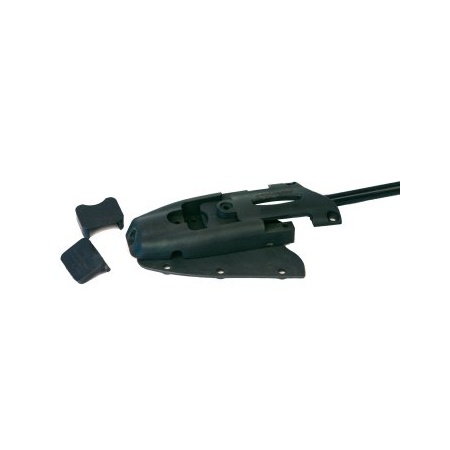

Die neue Lattenendkappe von Rutgerson wird aus einem besonders leichten und extrem flexiblem Komposit-Kunststoff hergestellt und bietet darüber hinaus noch eine sehr hohe UV-Beständigkeit. Diese Lattenendkappe kann mit jedem beliebigen Rutscher mit M10 Gewinde (z.B. Rutgerson Lattenrutscher auf der gegenüberliegenden Seite) genutzt werden. Die Lattenendkappe ist einfach zu montieren und kann mit Segellatten bis zu 40 x 6 mm bestückt werden. Die Einstellung der Spannung kann stufenlos mit einem Schraubendreher erfolgen und die Einstellungen können im Skalenfenster kontrolliert werden.
Hinweis:
Rutgerson empfiehlt dringend den Gebrauch seiner ausführlich erprobten Druckaufnahmerutscher.
Batten adjuster
Hinweis:
Rutgerson empfiehlt dringend den Gebrauch seiner ausführlich erprobten Druckaufnahmerutscher.
Batten adjuster
| Art.-No. | o.a. length mm | width mm | weight g | for battens max. | round sailbatten max. | Battcar |
| 110 mm | 50 mm | 96 g | 22 mm | 11mm | RS1530xx05 |

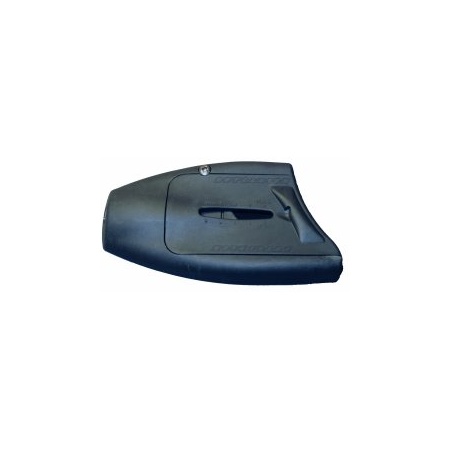

RS1590

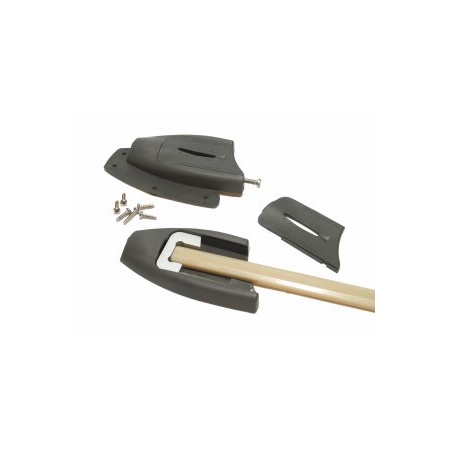

RS1595
RS1591
| Art.-No. | o.a. length mm | width mm | weight g | for battens max. | round sailbatten max. | battcar |
| 145 mm | 78 mm | 185 g | 40 mm | - | ||
| Like RS1590 but for Blue Streak battens only | RS1530xx05 | |||||

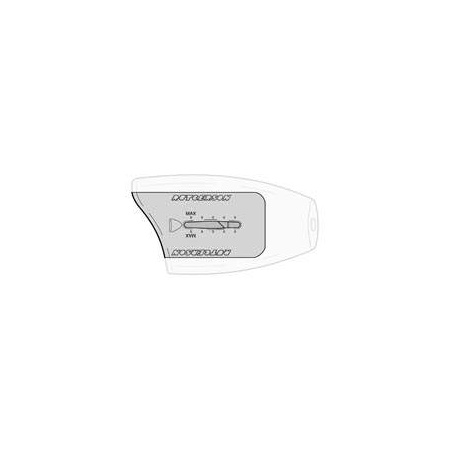

| spare cover plate with scale | ||||||

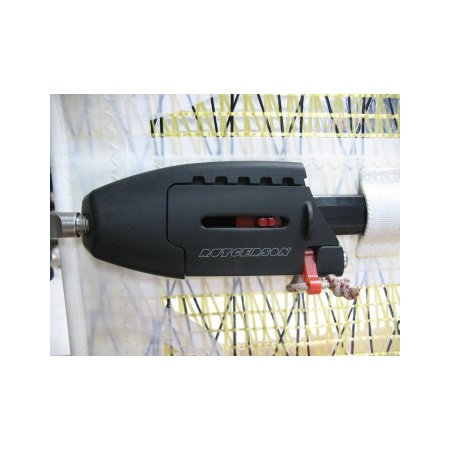

The new batten receptacle by RUTGERSON is incredibly user-friendly because it´s very easy to open without tools. Just pull the clip, push the lid to the side and the batten is free. Furthermore, the receptacle has no loose parts.
The batten is tensioned with a screw, which is located next to the batten entrance. A tensioning scale is clearly visible on the lid and a coloured marker indicates how tensioned the batten is.
It is very easy to install on the sail. The reason for this is the comparatively few fastening points, there are only five. Connection to batten cars with M10 thread (i.e. RS1530xx05)
The batten is tensioned with a screw, which is located next to the batten entrance. A tensioning scale is clearly visible on the lid and a coloured marker indicates how tensioned the batten is.
It is very easy to install on the sail. The reason for this is the comparatively few fastening points, there are only five. Connection to batten cars with M10 thread (i.e. RS1530xx05)
| Art.-No. | o.a. length mm | width mm | weight g | for battens max. | round sailbatten max. | battcar |
| 125 mm | 57 mm | 140 g | 25 x 10 mm | 10 mm | RS1530xx05 |
Short URL: http://lindemann.kg/s/16/192
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
